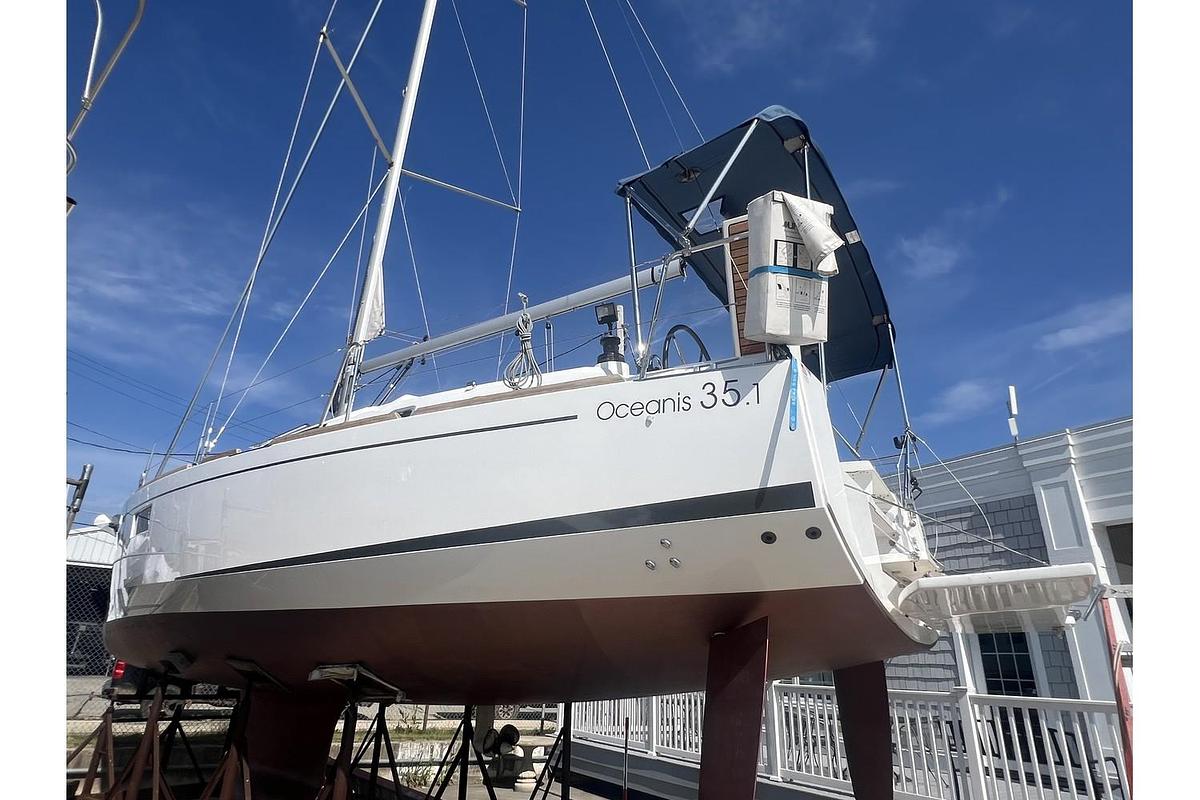

2019 Beneteau Oceanis 35.1

2019 Beneteau Oceanis 35.1

GENERAL SPECIFICATIONS

Overall Length (L.O.A): (without bowsprit): 34’3’’

Hull length: 32’9’’

L.W.L.: 31’10’’

Hull Beam: 12’2’’

Light displacement: 13,149 lbs

Shallow draft: 5’1’’

Shallow ballast weight: 4,022 lbs

Air draft: 51’2’’

Fresh water capacity: 34 US Gal

Fuel tank capacity: 34 US Gal

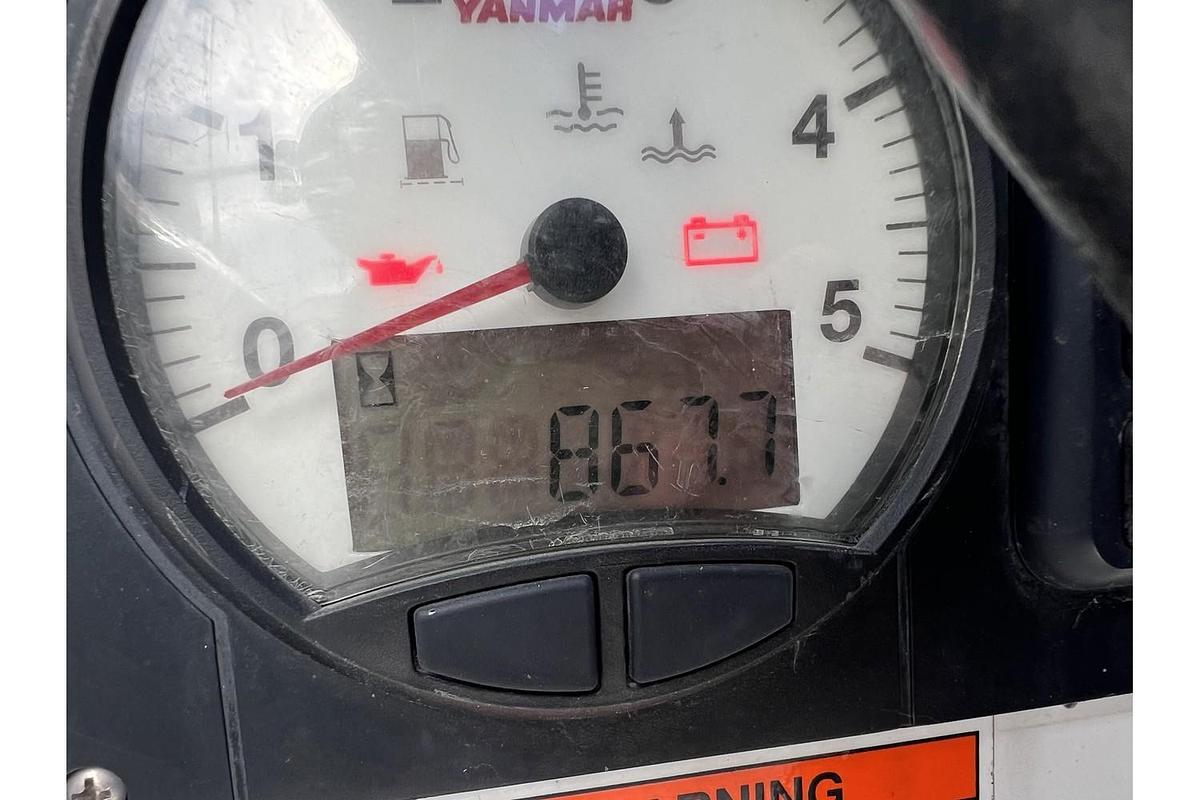

Engine power: 2019 Yanmar 3YM30 - 30 HP

COMPANIONWAY

Headroom: 1,85 m / 6’1’’

• GRP saloon companionway coated with non-slip surface on the steps

• 2 Leather covered stainless steel handrail

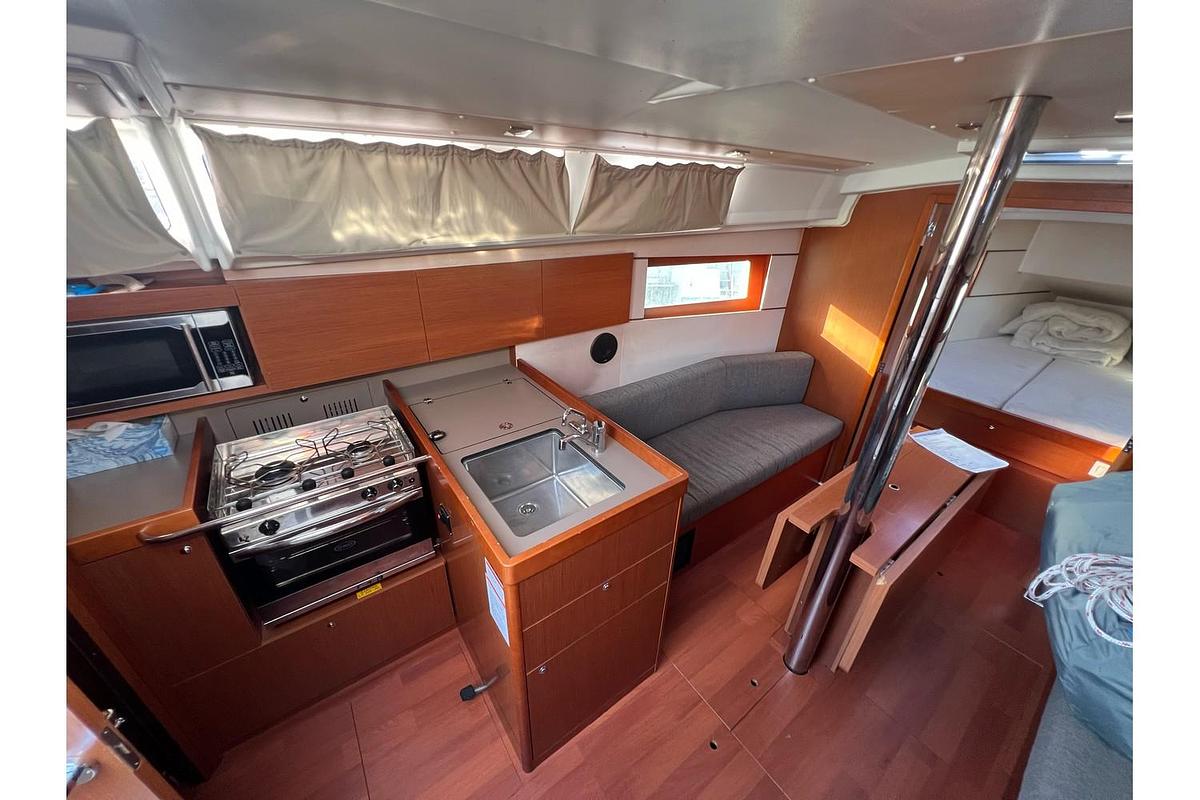

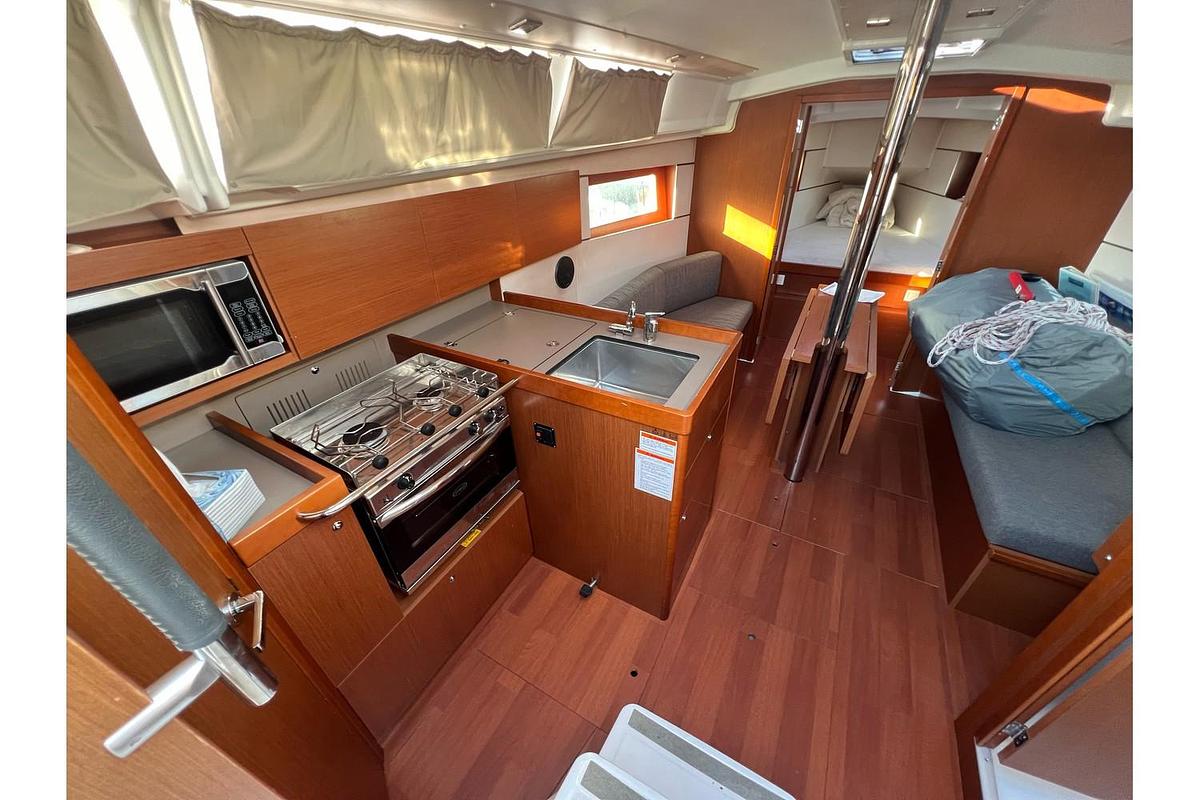

L-SHAPED GALLEY ON PORT SIDE VERSION

• Replacing the hanging locker and the chart table

• Galley with 100 L / 26 US Gal cool box instead of the 130 L / 34 US Gal fridge

• Full hull width saloon: Bench seat on port and starboard sides, Large saloon table with 2 leaves and bottle rack, Retractable chart table on starboard side

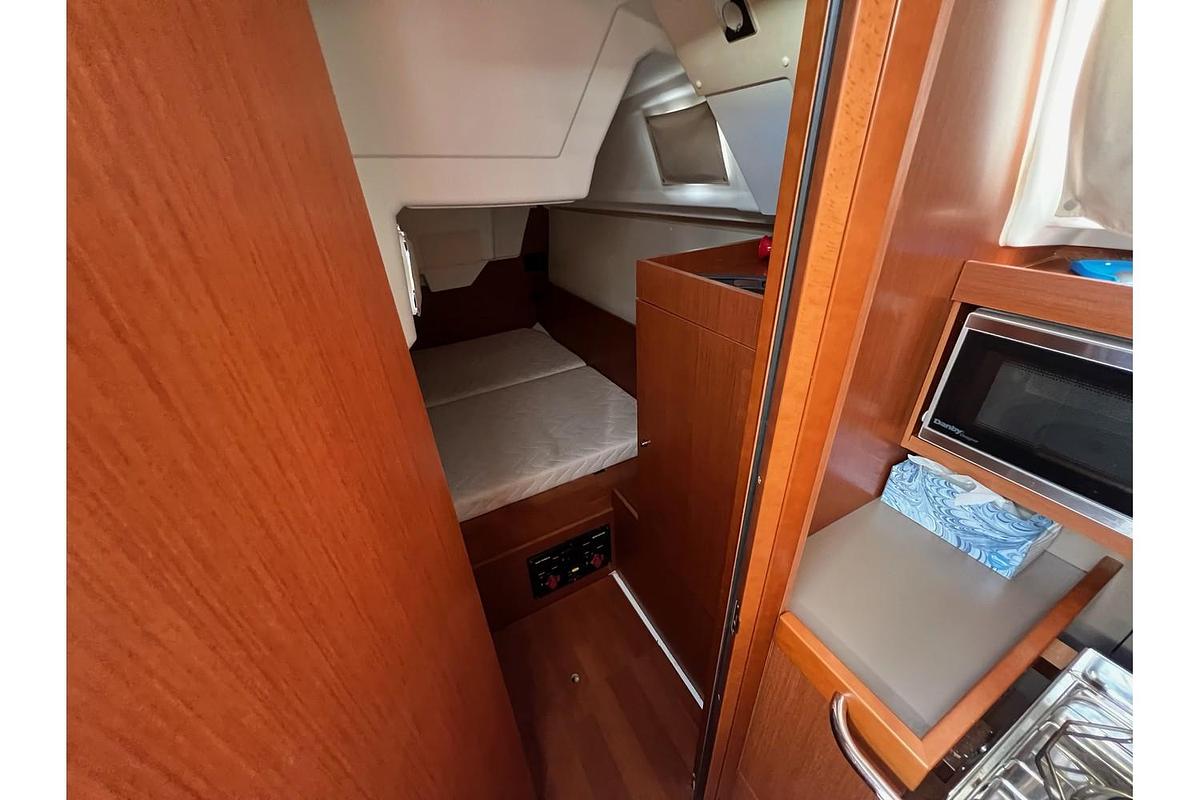

PORT AFT: 1 Cabin

Headroom: 1,75 m / 5’9’’

• Dimensions - Berths: 1,73 m x 1,98 m / 5’8’’ x 6’6’’

• 1 Overhead light, 2 Reading lights

• Open shelving

• Padding upholstery along the hull

• 1 Wood hanging locker

• Deck house opening porthole

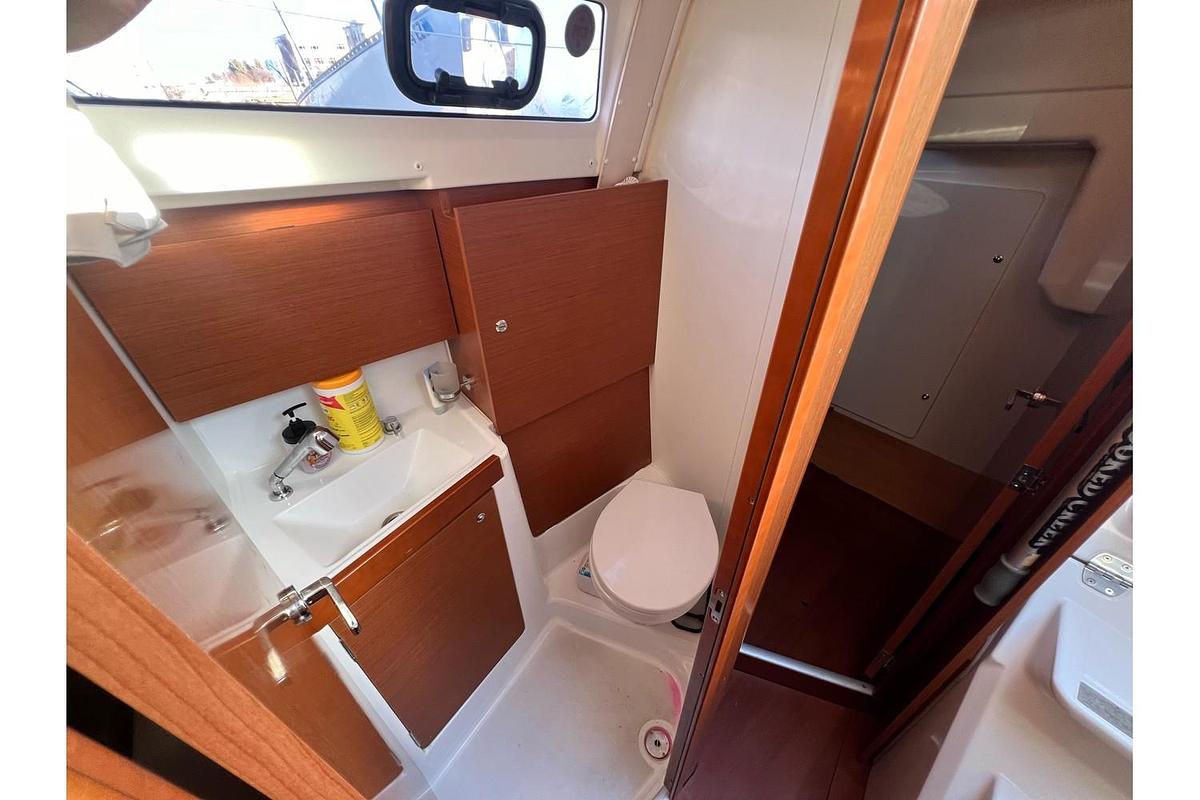

AFT STARBOARD HEAD COMPARTMENT

Headroom: 1,90 m / 6’31’’

• Access through saloon

• 1 Basin, 1 Mixing tap hot/cold water, Shower

• 1 Manual marine toilet with 80 L / 21 US Gal rigid reserve

• Head cabinet, 1 Mirror, Toilet accessories, Peg

• 1 Overhead light

• 1 Opening portlight with curtains in side windows in the coaming

STARBOARD AFT: Interior stowage space

Headroom: 1,75 m / 5’9’’

• Direct access from the saloon

• Allows direct access to the cockpit locker

FORWARD CABIN

Headroom: 1,80 m / 5’11’’

• Central double bed (1,75 m x 2,00 m x 0,45 m / 5’9’’ x 6’7’’ x 1’6’’)

• 2 Hanger closets

• Drawer under the bed

• 1 Opening deck hatch with fan, mosquito blind

• 2 Hull portholes with curtain

• 2 Reading lights

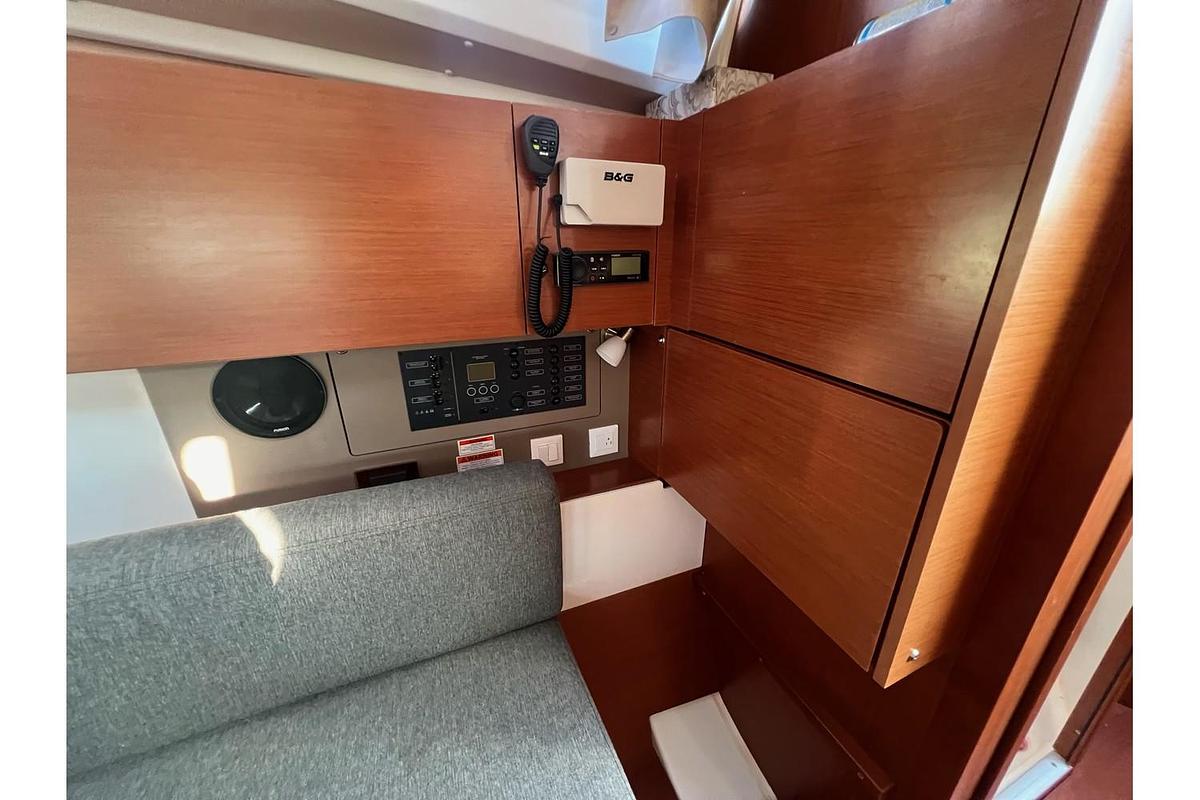

B&G Electronic

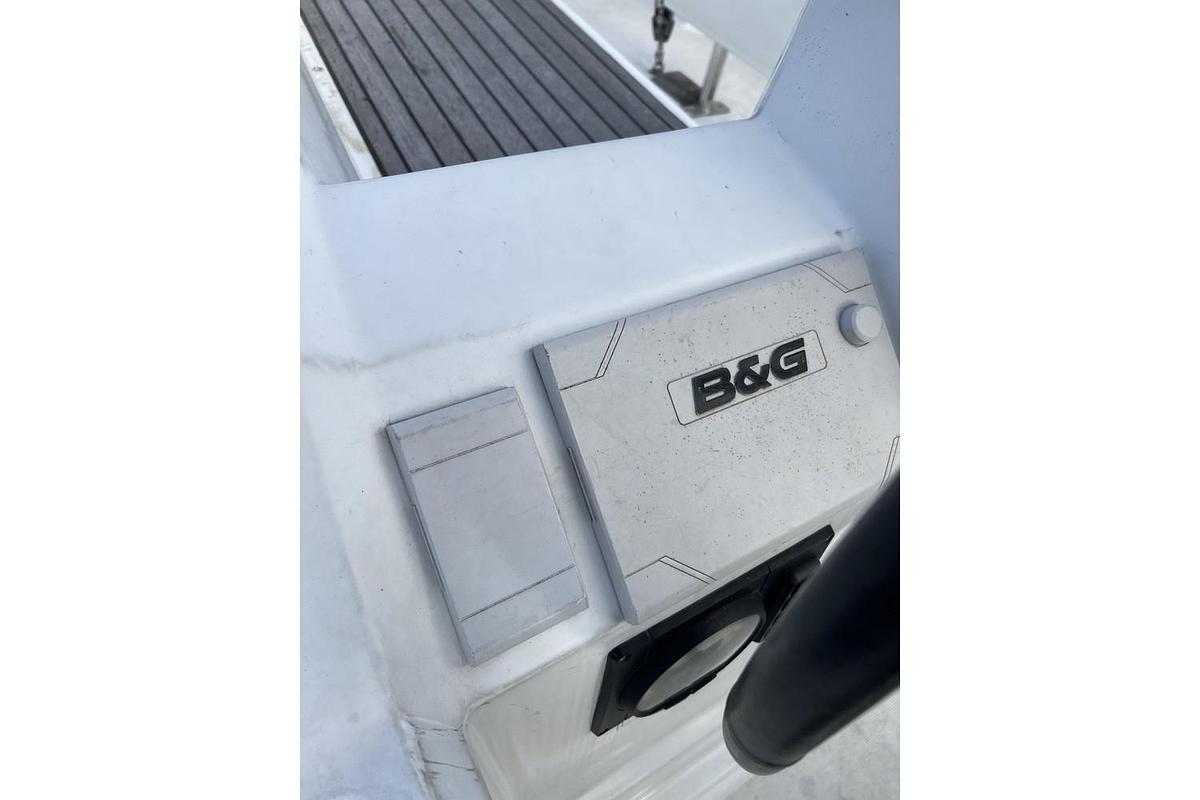

• B&G AC42 autopilot + Control at steering station

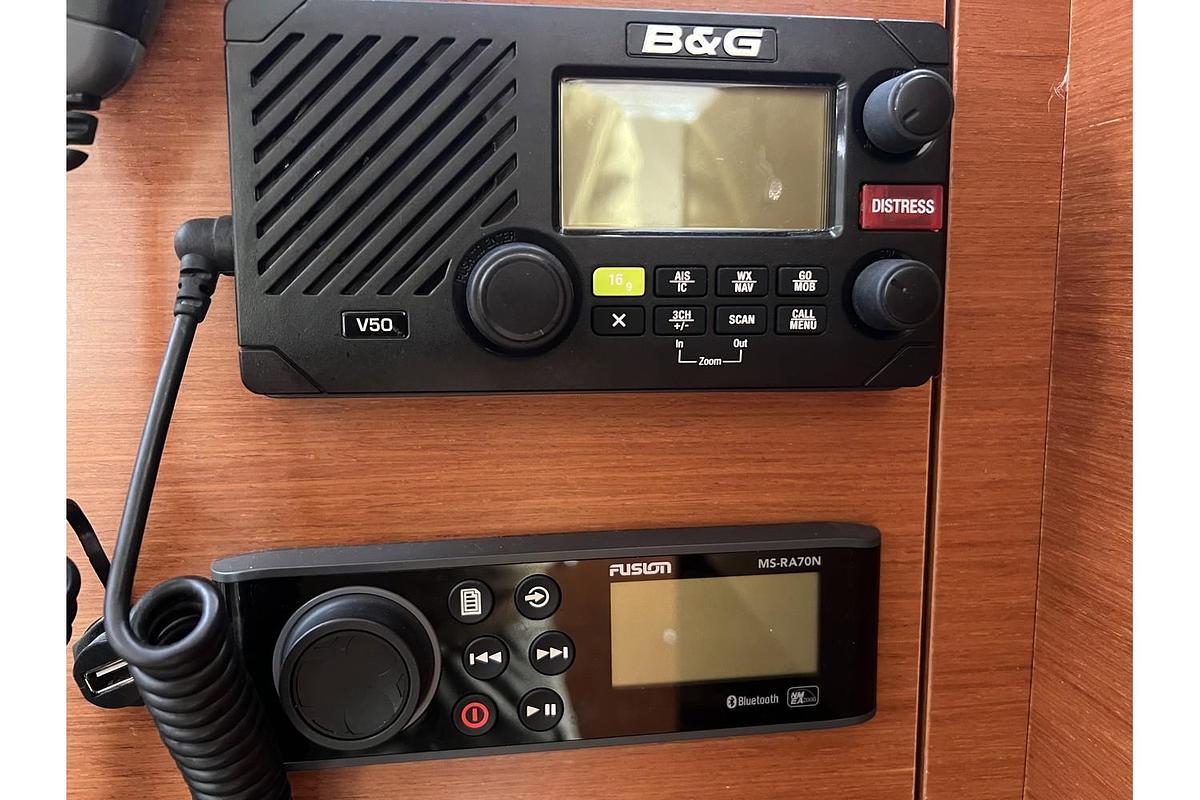

• B&G V50 VHF, AIS receiver function

• Fusion MS-RA70N bluetooth stereo - Speakers in cabin

Rigging - Sails

• Anodized mast furling system with Mylar - Taffetas mainsail
• Genoa sheet track leads adjustable from the cockpit

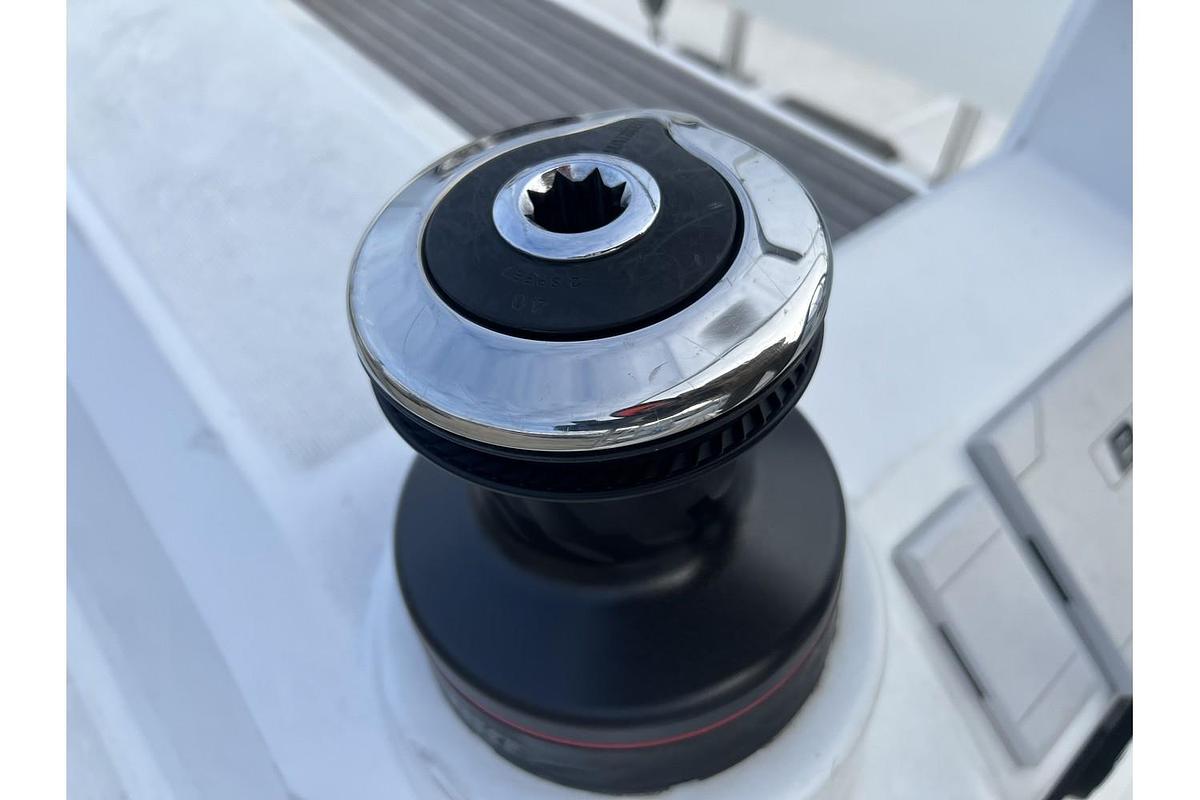

Winches

• Harken 40 - 2 Speed Self Tailing
• Harken 35 - 2 Speed Self Tailing

MOORING LINES - MOORING

• Self-bailing chain locker - Clench bolt - Hatch cover

• Single stem roller

• 6 Aluminium mooring cleats - Stainless steel deck line protection

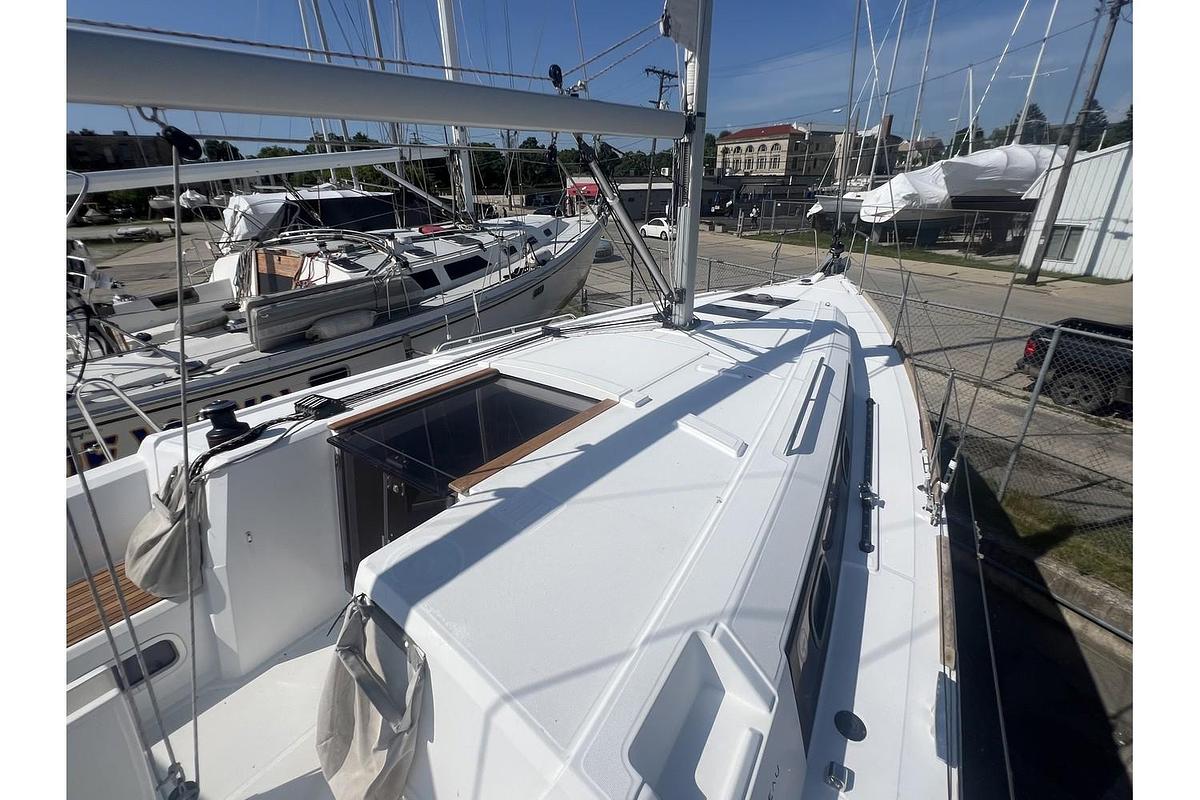

SAFETY ON DECK

• 1 Open stainless steel forward pulpit, 2 Stainless steel pushpits

• 1 Lifebuoys support bracket

• Double guardrail and stainless steel stanchions

• Openings in guardrail to port and starboard

• Ring for flag welded on pushpit

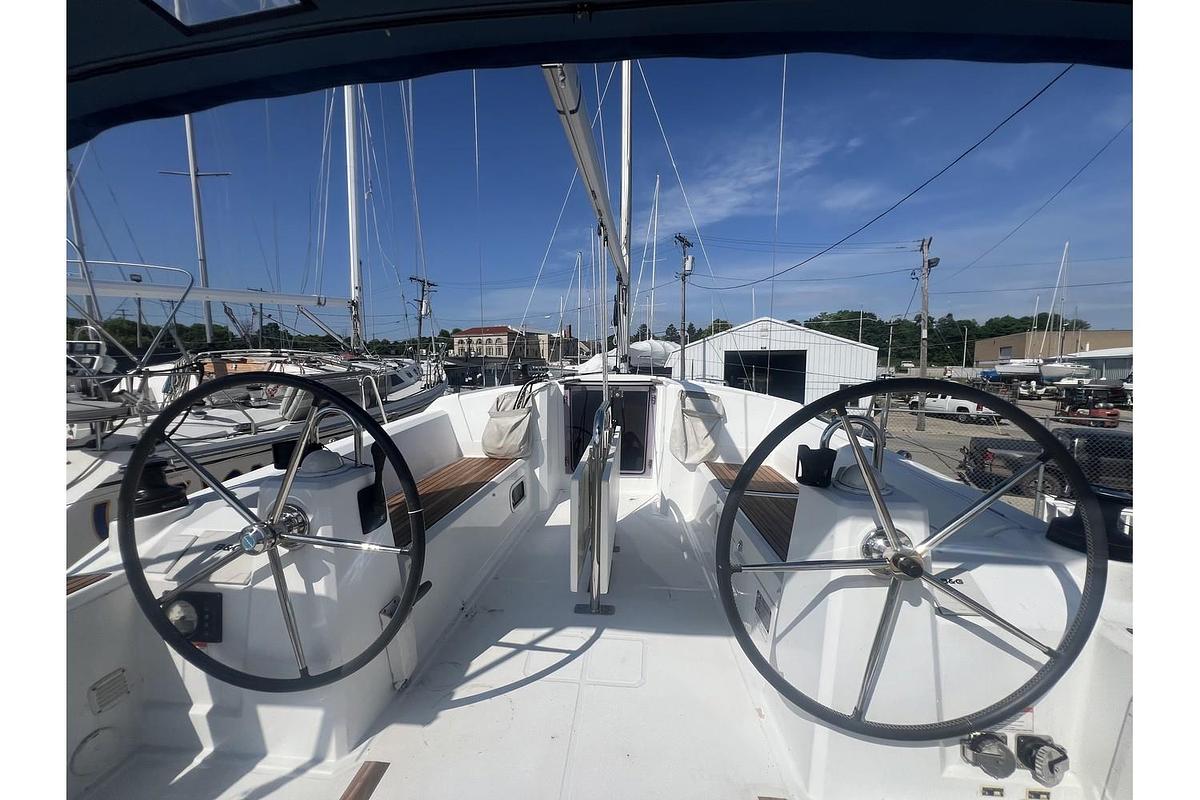

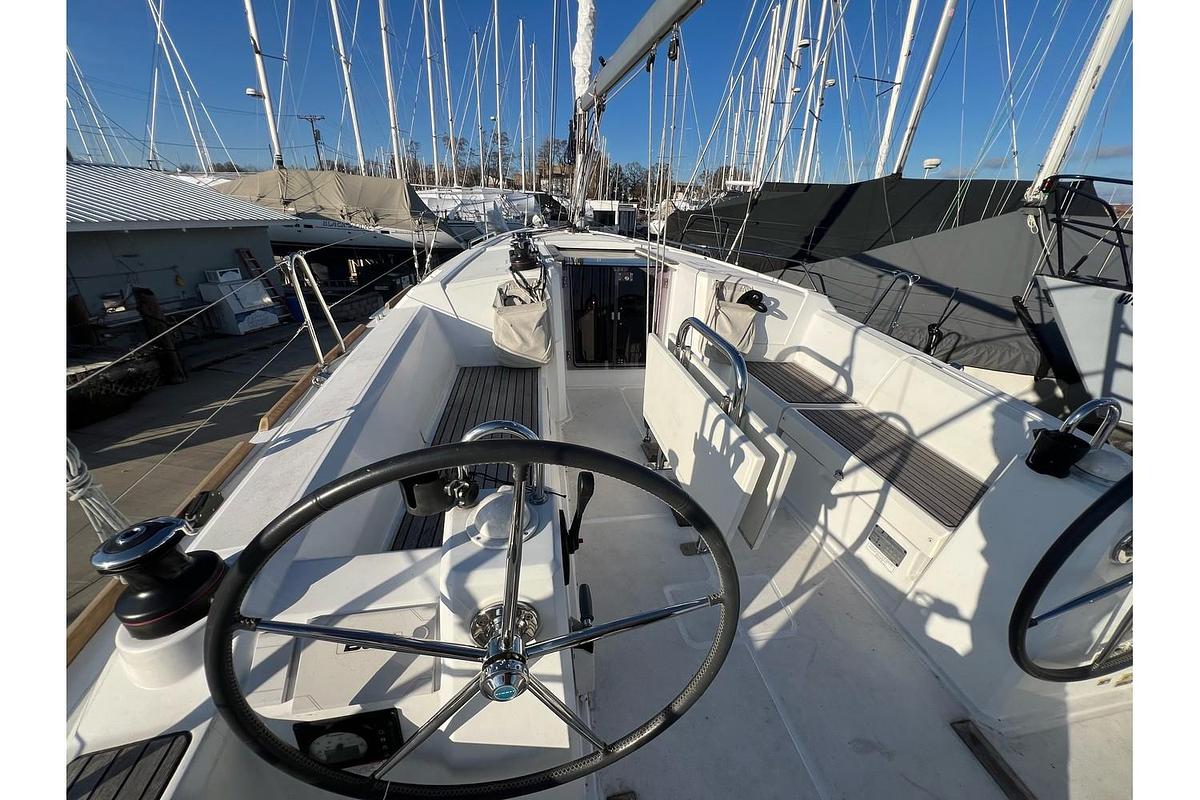

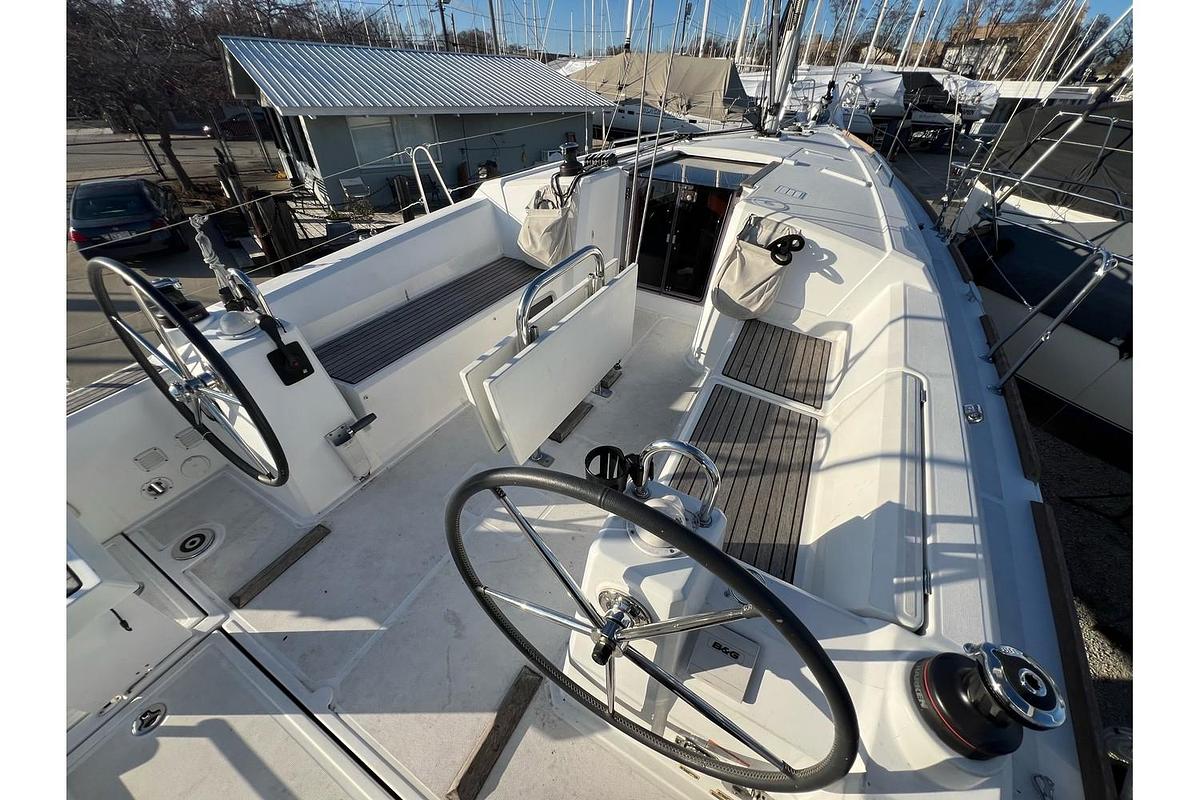

COCKPIT

• Self-draining cockpit

• 1 Cockpit locker

• 2 Lockers in cockpit bottom - Side helm's seats

• 1 Liferaft locker - aft cockipt (0,95 m x 0,59 m x 0,36 m / 3’1’’ x 1’11’’ x 1’2’’)

• Natural solid wood slatted cockpit benches (1,50 m x 0,50 m / 4’11’’ x 1’8’’)

• 2 Steering wheel consoles: Stainless steel steering wheels - 800 mm diameter / 2’7’’ - Leather covered - Steering gear at the helm station - metal cable transmission system - Stainless steel handrail - navigation instrument support (optional instruments) - Cup holder

• 2 Steering compass

• 2 Deck access points to tiller system

• 1 Emergency tiller

• Portside engine control and control panel

• 2 Hinged PMMA companionway doors - Sliding hatch made of PMMA

• 1 Swimming ladder

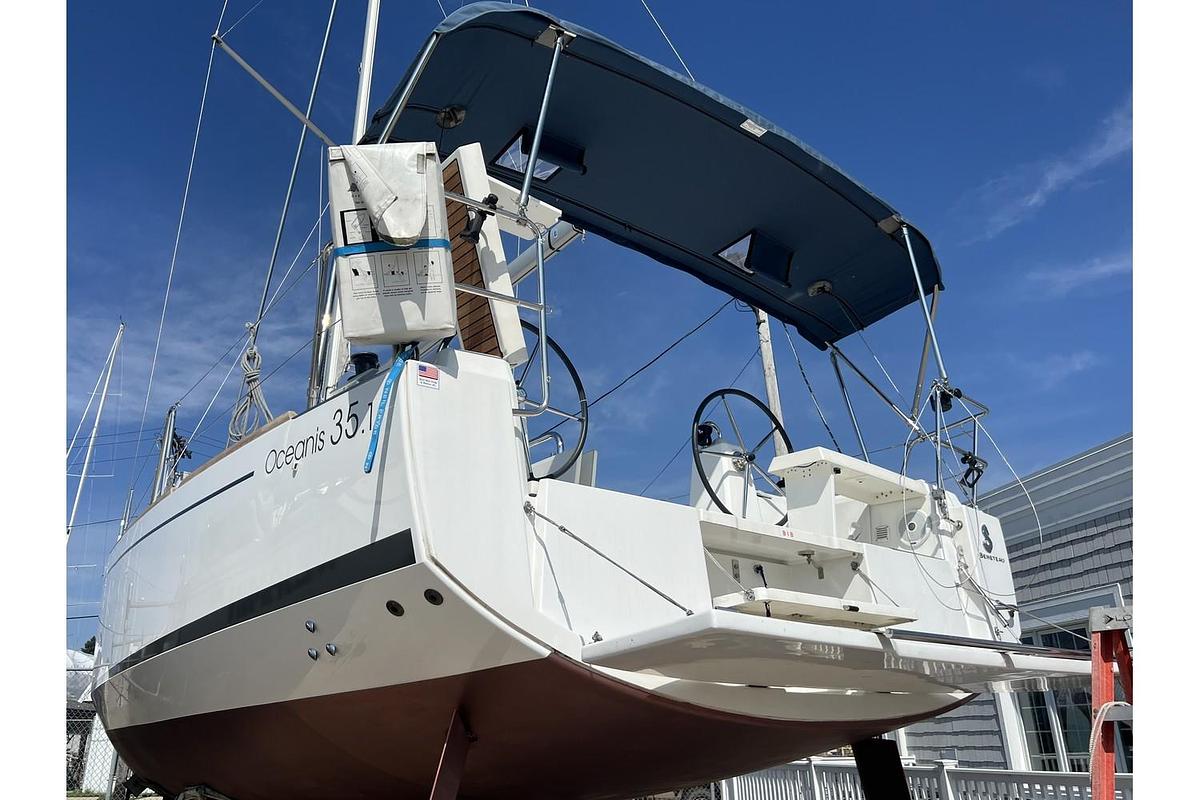

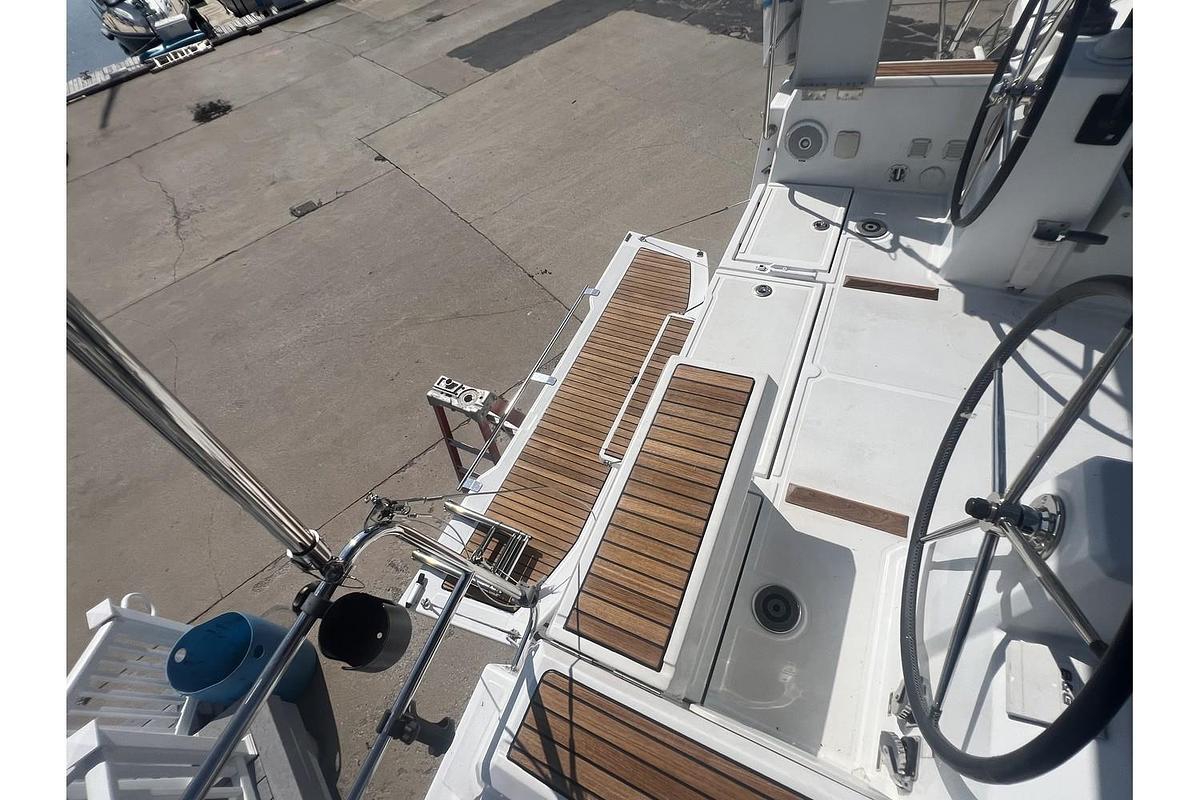

SWIM DECK / STERN DECK (Exclusive Trim level)

• Fully opening transom, convertible to bathing platform (2,60 m x 0,70 m / 8’6’’ x 2’4’’)

• Gas strut opening (manual), 1 Stainless steel integrated telescopic swimming ladder
