2022 Grand G420 Golden Line

Racine, Wisconsin



2022 G420 Golden Line

This model including these features:

  • Grand Luxe Electric Package: horn, bilge pump, navigation lights
  • Overpressure Valve leafield with filter cap
  • SILVERTEX upholstery upgrade
  • Sea Deck antiskid
  • Fuel system with 14gal. tank and sender
  • water ski towing mast
  • bow removeable sundeck with cushions

The proven High Step Hull design ensures excellent maneuverability combined with dynamic stability and impressive speed capability. Safety handrails are fitted as standard on the port and starboard side of the ergonomically designed pilot/passenger seats and steering console.

As with all models in the Golden Line Series, the G420 is equipped with a comprehensive list of standard equipment plus a wide range of accessories including a 55 liter built in fuel tank, that will enhance the boat’s range and add to it’s unique individuality.

Despite it’s shorter length, the boat has the same passenger capacity (6 persons) as the larger G480. And this is not the only common feature these boats share. For example they both have a similar internal width (making the G420 really comfortable). Not surprisingly therefore, with a slightly smaller tube diameter, the G420 has a very similar overall width to the G480.
Another valuable feature is the optional 55-liter built-in fuel tank.



Length overall cm/ ft inches 420/ 13′ 9”

Length inside cm/ft inches 290/9′ 6”

Width overall cm/ ft inches 200/6′ 7”

Width inside cm/ft inches 105/3′ 5”

Tube diameter cm/ft inches 48/19”

Bare Boat weight * kg/lbs 255/1177

Transport Boat weight ** kg/lbs 325/325

Loading capacity *** kg/lbs 800/1760

Passenger capacity   6

No of chambers   4

Engine recommended HP/ 40/29,4

Engine max HP/ 60/44,1

Engine weight max kg/lbs 120/264

Engine shaft length inches 20″(long)

Midsection / aft deadrise degrees 20°/ 17°

Bottom type   RIB

New 2021 Honda Marine BF60A1LRT 60hp. fourstroke outboard

Honda Deluxe engine controls

Honda key switch & harness assembly

Honda throttle & shift cables

Heavy duty marine starting battery

Hydroplaner S.S. fin installed

Honda engine instrumentation package

Trailmaster CR1515 1,500 carrying capacity custom Wide Frame series trailer

LED light upgrade

Large steel side steps with aluminum diamond plate treads

Carpeted inner fender covers

Spare tire & welded side mount spare tire carrier

Matching "Grand Marine" paint and graphics

Trailer tie down straps

All factory freight charges and all dealer prep/rigging charges are included

Honda Marine 5 year factory engine warranty



Basic Boat Info

Make: Grand
Model: G420 Golden Line
Year: 2022
Condition: New
Category: Power
Construction: Fiberglass
Boat Hull ID: MSU88093B122
Has Hull ID: Yes

Dimensions

Length: 13'11 ft
Length Overall: 13'9 ft
Beam: 6'7 ft
Dry Weight: 1,045 lb

Engines / Speed

Engines: 1
  • Make: Honda
  • Model: BF60A1LRTA
  • Fuel: Unleaded
  • Engine Power: 60hp
  • Type: Outboard 4 Stroke

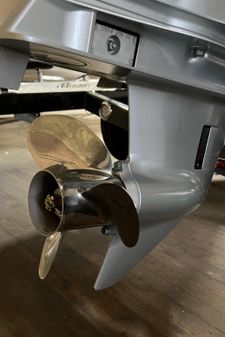

  • Propeller Type: 3 Blade, Stainless Steel
  • Year: 2021

Tanks

Fuel Tanks: 1
Fuel Tank Capacity: 15 gal
Fuel Tank Material: Aluminum

Other

Boat Class: Dinghies, Inflatables, Rigid Sports Inflatable

Contact

Racine Riverside Marine, Inc.

Office

Racine Riverside Marine, Inc.
950 Erie Street
Racine, Wisconsin, US, 53402
Tel:262 636 8020
